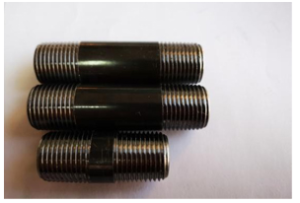

DIN2982 WELDED PIPE NIPPLE

Carbon steel; DIN2440; welded,or seamless Black, Sandblasted

DIN2999, BSPT, ISO7/1





Size

Threaded Tube DIN2440

Threaded welded nipples have a male thread on one side and a weld end on the other side.

O.D. Wall thickness
DN inch B, mm S, mm Length,mm
6 1/8 10.2 2.0 50 100 150 200 250 300
8 1/4 13.5 2.35 50 100 150 200 250 300
10 3/8 17.2 2.35 50 100 150 200 250 300
15 1/2 21.3 2.65 50 100 150 200 250 300
20 3/4 26.9 2.65 50 100 150 200 250 300
25 1 33.7 3.25 50 100 150 200 250 300
32 11/4 42.4 3.25 50 100 150 200 250 300
40 11/2 48.3 3.25 50 100 150 200 250 300
50 2 60.3 3.65 50 100 150 200 250 300
65 21/2 76.1 3.65 50 100 150 200 250 300
80 3 88.9 4.05 50 100 150 200 250 300
100 4 114.3 4.5 50 100 150 200 250 300
125 5 139.7 4.85 50 100 150 200 250 300
150 6 165.1 4.85 50 100 150 200 250 300

Noted: Other lengths and size available. Grooved end, SQ end and Bevel end available. Contact us for details.
