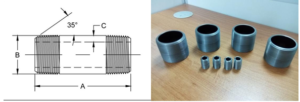

EN10241 SEAMLESS PIPE NIPPLE

Carbon steel, BS1387, seamless DIN2999 / BSPT / ISO 7/1.



Size

Threaded Tube BS 1387 Length
O.D. B, mm Wall thickness S, mm Running nipples Barrel nipples
DN inch Light Medium

/ Heavy

Light Medium Heavy L,mm L, mm
6 1/8 10.2 10.2 1.6 2.0 16 30mm – 2500mm
8 1/4 13.6 13.9 1.8 2.3 2.9 18 30mm – 2500mm
10 3/8 17.1 17.4 1.8 2.3 2.9 22 30mm – 2500mm
15 1/2 21.4 21.7 2.0 2.6 3.2 25 30mm – 2500mm
20 3/4 26.9 27.2 2.3 2.6 3.2 30 30mm – 2500mm
25 1 33.8 34.2 2.6 3.2 4.0 35 30mm – 2500mm
32 11/4 42.5 42.9 2.6 3.2 4.0 38 30mm – 2500mm
40 11/2 48.4 48.8 2.9 3.2 4.0 38 30mm – 2500mm
50 2 60.2 60.8 2.9 3.6 4.5 45 30mm – 2500mm
65 21/2 76.0 76.6 3.2 3.6 4.5 55 30mm – 2500mm
80 3 88.7 89.5 3.2 4.0 5.0 60 30mm – 2500mm
100 4 113.9 114.9 3.6 4.5 5.4 70 30mm – 2500mm
125 5 139.7 5.0 5.4 85 30mm – 2500mm
150 6 165.1 5.0 5.4 100 30mm – 2500mm
