STAINLESS STEEL PIPE SOCKETS
304,316, 304L / 316L
O.D. Machined
ANSI B1.20.1

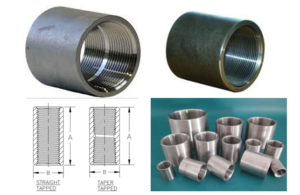

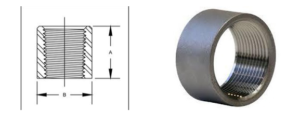

Standard Merchant Couplings
| Pipe Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1 |
| A | 0.812 | 1.188 | 1.188 | 1.562 | 1.625 | 2.000 | 2.062 | 2.062 | 2.125 | 3.125 | 3.250 | 3.3 |
| B | 0.562 | 0.719 | 0.875 | 1.062 | 1.312 | 1.576 | 1.900 | 2.200 | 2.750 | 3.250 | 4.000 | 4.6 |
Notes: 1/8” – 1” Taper Tapped(NPT),1-1/4– 2” Straight Tapped(NPS), 2.5” – 6”Taper Tapped(NPT).
