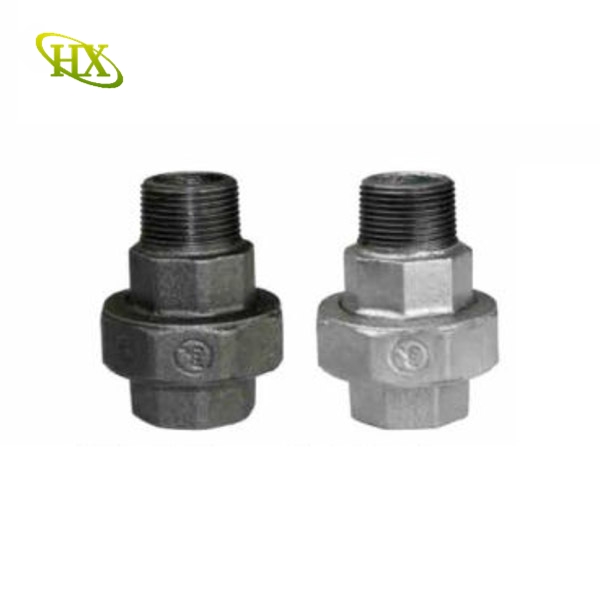

M&F Straight Union, conical seat

Categories :
Contact Now
  • Description



M-12 PRICE LIST                            Prices per 100 pieces in U.S. Dollars
NO Name 1/4″ 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″
1 Bends,M,＆,F,90° 34 34 46 68 110 150 230 470 679 1399 3000 4999
2 Bends,Female 90° 34 34 52 75 120 170 260 518 746 1538 3300 5498
3 Bends,Male 90° 34 34 47 76 130 180 250 494 713 1469 3151 5249
40 Bends, M,＆,F,45° 32 32 42 67 100 140 220 460 630 1300 3000 4500
41 Bends, Female 45° 35 35 56 80 130 180 280 500 750 1500 3600 6000
42 Bends, Male 45° 42 42 49 68 110 150 250 470 679 1399 3000 4999
1090 Elbows,Plain,Equal 90° 20 16 23 33 53 66 104
1090R Elbows,Plain,Reducing 90° 21 21 28 42 67 84 124
90 Elbows,Beaded,Equal 90° 20 17 25 38 57 76 114 210 320 580 1600 2300
90R Elbows, Beaded,Reducing 90° 21 21 28 42 67 84 124 257 418 713 1900 2850
1092 Elbows,Plain, M,＆,F,Equal 90° 22 20 29 43 75 92 130
92 Elbows, Beaded, M,＆,F,Equal 90° 22 20 29 43 75 92 130 290 450 750 2000 3000
1120 Elbows,Plain,45° 22 18 27 40 65 80 120
120 Elbows,Beaded,45° 22 18 27 40 65 80 120 250 380 650 1900 2200
1130 Tees,Plain, Equal 90° 25 20 30 47 70 89 133
1130R Tees, Plain, Equal 90° 32 32 39 60 90 114 162
130 Tees, Beaded, Equal 90° 23 22 31 49 74 95 143 320 420 760 2000 2700
130R Tees, Beaded, Reducing 90° 32 32 39 60 90 114 162 333 475 903 2375 3230
1180 Crosses,Plain,Equal 90° 50 50 70 95 140 190 260
1180R Crosses,Plain, Reducing 90° 85 85 85 114 162 219 285
180 Crosses, Beaded, Equal 90° 50 50 70 95 140 190 260 500 700 1300 3000 4500
180R Crosses, Beaded, Reducing 90° 65 85 85 110 162 219 285 570 808 1495 3449 5174
1221 Side Outlet Elbows Plain,Equal 55 51 63 90 130 170 220
221 Side Outlet Elbows Beaded,Equal 63 59 72 103 150 195 253
1223 Side Outlet Tees Plain,Equal 60 60 80 110 160 220 320
223 Side Outlet Tees Beaded ,Equal 72 70 96 132 192 264 384
1240 ConcentricReducing Sockets,Plain,with Ribs 17 17 24 32 47 56 85
240 Concentric Reducing Sockets, Beaded,with Ribs 17 17 24 32 47 56 85 160 250 460 900 1200
241 Bushing M .＆.F 15 14 16 24 38 45 62 104 152 300 600 840
1270 Sockets,Plain,with Ribs,Right Hand Threads 15 13 17 29 40 49 76
270 Sockets, Beaded,with Ribs,Right Hand Threads 15 14 18 30 43 52 81 150 220 360 850 1100
280 Hexagon Nipples,Equal Right Hand Threads 15 14 19 27 39 54 74 130 220 350 750 1300
245 Hexagon Nipples, Reducing 20 20 25 36 60 75 110 200 340 600
290 Plugs Beaded 12 12 14 19 29 33 48 100 140 250 650 750
291 Plugs Plain 12 12 14 19 29 33 48 100 140 250 650 750
301 Round Caps 14 14 17 24 35 46 64 130 180 300 700 1000
310 Backnuts 13 12 13 16 21 27 42 80 120 230 360 500
321 Round Flanges,Light Pattern without Bolt Hole 52 52 72 84 120 140 170 280 360 550 900 1000
320 Round Flanges,with Bolt Hole 52 52 72 84 120 140 170 280 360 550 900 1000
330 Round Flat Seat,without Gasket 60 54 66 81 114 152 218 400 630 1200 2100 2700
331 Union,M ＆F. Flat Seat,without Gasket 70 90 110 160 200 270 500 780 1500
340 Conical Unions 75 75 95 110 150 200 300 500 850 1600 2500 3500
341 Union, M ＆F,Conical Joint Iron To Iron Seat 85 110 130 170 230 340 590 1000 1900
342 Union, M ＆F,Conical Joint Iron To Iron Seat 90 90 115 135 180 240 360 600 1000 1920 3000 4200
529 Sockets,M. ＆F. Plain,Equal 17 17 22 34 50 60 94
529A Sockets,M. ＆F. Plain,Equal 19 19 24 38 55 67 101
85 Crosses over 52 86 119 189 203 405
121 Street Elbows,45°,Banded,equal 30 30 46 61 100 120 200 400 600 900
95 Union Elbows,F ＆F,flat seat without gasket 80 100 120 170 230 320
96 Union Elbows,F ＆F,conical joint iron to iron 100 130 150 210 270 400 670 1150 2160
97 Union Elbows,M ＆F,flate seat without gasket 90 115 140 200 260 370
98 Union Elbows,M ＆F,conical joint iron to iron 110 145 170 240 300 440 740 1260 2730
