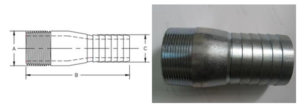

Serrated Male Adapters for Plastic Pipe
| Pipe Size | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
| Part Number | M-10 | M-20 | M-30 | M-40 | M-50 | M-60 | M-70 | M-80 | M-90 |
| A | 0.840 | 1.050 | 1.315 | 1.660 | 1.900 | 2.375 | 2.875 | 3.500 | 4.500 |
| B | 3.125 | 3.375 | 3.500 | 3.500 | 4.250 | 4.250 | 5.375 | 5.875 | 7.000 |
| C | 0.645 | 0.845 | 1.075 | 1.405 | 1.640 | 2.095 | 2.505 | 3.100 | 4.060 |
Material: ASTM A53 Steel pipe, ASTM B43 Red Brass Notes: Use with Schedule 40 plastic pipe
Plastic pipe must be secured to Adapter with One or Two worm type hose clamps Pressure Rating equals that of Plastic Pipe
