| Material |
1.Carbon steel 2.Stainless steel |
| British Standard |
Threads:BS21 |
| DIN Standard |
Threads:DIN2999 |
| American Standard |
Threads:ASTM A865, ASTM A733 |
| Hydraulic Test |
Test Pressure: Max2.5MPa |
| Working Pressure: Max2.5MPa |
| Model |
Thread both end nipple, thread one end nipple, close/full nipple |
| Surface |
1. Galvanized 2. Electro galvanised 3.normal black 4.sand blasting |
| Size |
OD:1/8”-6” |
| WT: SCH20, SCH40, SCH80, SCH160, STD, xs, xxs, CLASS A, CLASS B, CLASS C etc |
| Length: Standard or Special |
| Series |
Heavy series, Standard series, Mediun series, Light series |
| Connection |
Male |
| Shape |
Equal |
| Certificate |
ISO |
| Customers’ drawing or designs are available. |

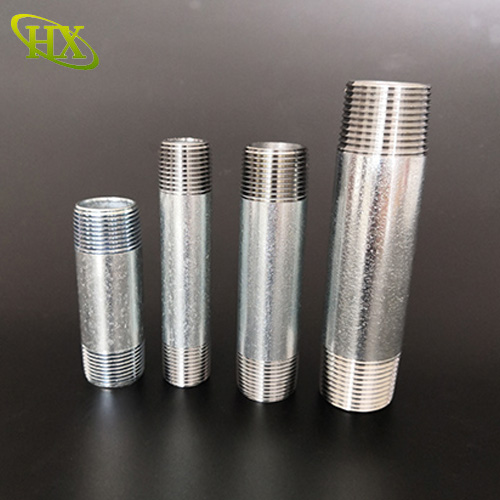

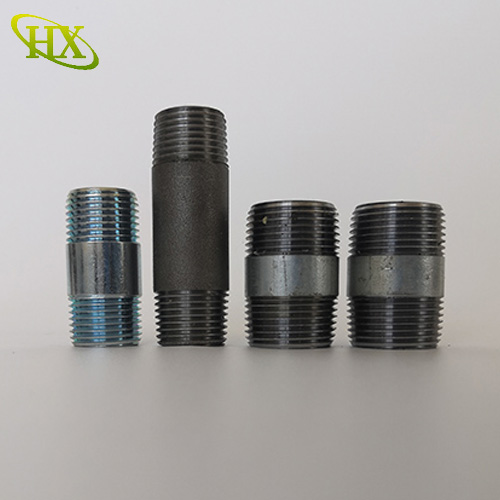

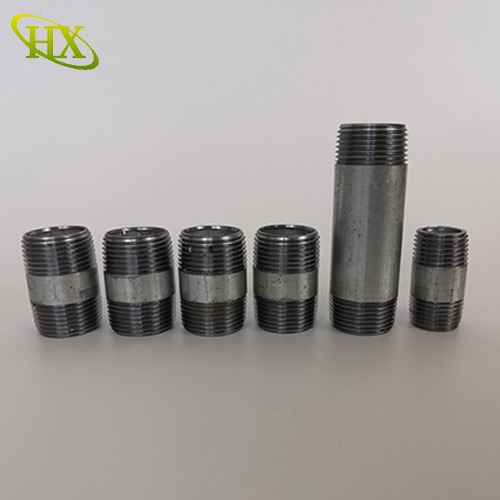

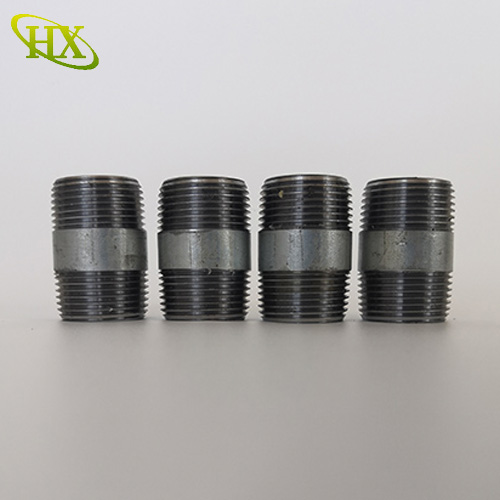

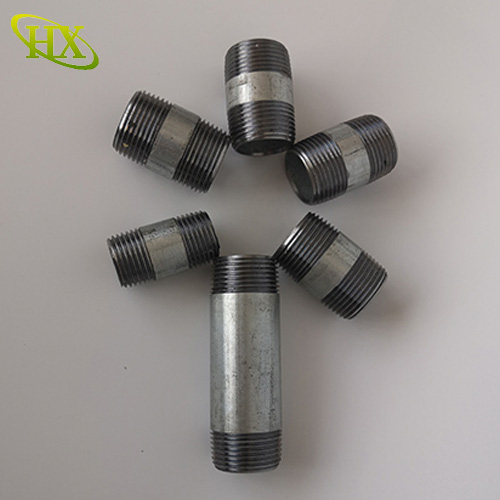

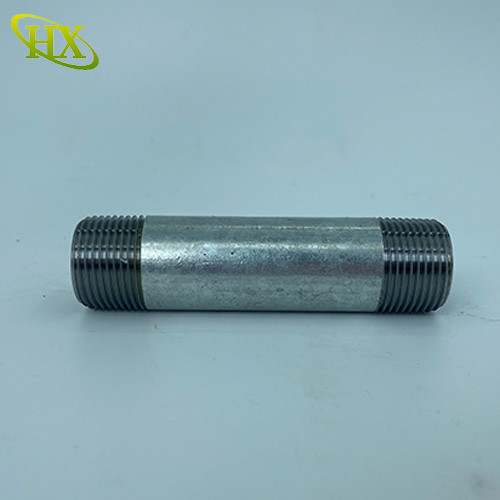

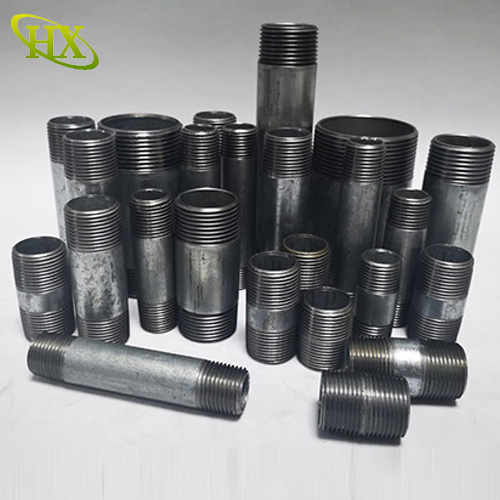

When it comes to plumbing and piping, a nipple is a fitting that is a short piece of pipe. A nipple is usually provided with a male pipe thread (MPT) connection at each end of the fitting, which are used to make a watertight seal when connecting piping to threaded fittings, valves or equipment. Galvanized steel pipe is coated in zinc, giving it superior rust resistance in outdoor applications, compared to other finished.
Galvanized steel nipples are primarily used in industrial and outdoor applications. They are well suited for any above-ground outdoor work. The zinc coating gives galvanized pipe nipples a toughness and longevity that is well-suited for outdoor environments. Although they are ideal for cold water, they can even withstand hot water. In any case, the strength of galvanized steel is matched only by its price efficiency.
At Hongxin Pipes&Fittings, we make every customer satisfied with great-quality pipe nipples and unique service. If you are looking for cheap galvanized pipe fittings, contact us now.
