|Specification||Stainless steel pipe socket /pipe coupling|
|Surface||Hot dipped galvanized,Cold galvanized, Black|
|Grade||Heavy series, Standard series, Medium series, Light series|
|Packing||Bags,Cartons,Pallets or as Buyer’s request|
|Application||Steam, air, gas and oil pipes or for many other fluids|
|Length||3/4″-24″; 19mm-500mm; Or as per customer’s request|
|Thickness||SCH10 SCH20 SCH40 SCH80 SCH160; CLASS A, CLASS B, CLASS C|
|Surface||Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black|
|Threads||DIN, BS, NPT, Metric, BSPT, BSP, NPS (ISO7/1, DIN 2999, ANSI B1.20.1)|
|Dimension||BS EN10241, ASTM A733, DIN2982|
|Type||Full length,half length,Saddle/plain end,or according to special request|
|Mechanical Properties||Tensile Strength ≥ 320N/mm2|
|Yield Strength≥ 195N/mm2|
|Hydraulic Test||Working Pressure: Max 1.5MPa|
|Test Pressure: Max 2.5MPa|
|Temperature:||-20 ~ 120 °c|
|Production Capacity||60000 MT per Year|
|Lead Time||Within 30 Days if enquiry not more than 1×20′ Container|

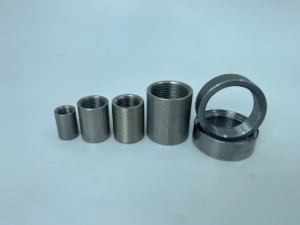

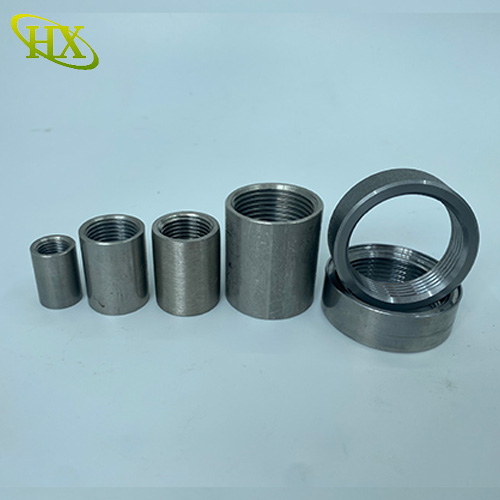

Stainless steel pipe socket / pipe coupling is one of popular products because it has long life, corrosion resistance to high temperature and low temperature.It is one kind of couplings which connects to pipe by thread. And it can be further divided into two types: full coupling and half coupling.
Full Coupling VS Half Coupling
First of all, it has obvious difference on the size. The length of Half Coupling is half that of Full Coupling.
Take ASME B16.11 1” SS 316 NPT Threaded Half and Full Coupling as an example. For the full coupling, the length of end to end is 60mm, so the half one is 30mm. But the NPT thread are in the same length of 14.7mm. Because the stainless steel threaded full coupling has thread at both ends while the threaded half coupling only has at one end , that leads to the second big difference between them.
The second difference between them is threaded half coupling only can be connected by thread in one direction, while threaded full coupling can be connected in both directions.
Stainless Steel Threaded Fittings are good in corrosion resistance and appearance. There are two pressure grades: 3000lb and 6000lb, the NPS of it are from 1/8 inch to 4 inch.
